Write your own custom Azure Policies with Terraform

Write your own custom Azure Policies with Terraform

Previously on this blog we've talked about dealing with Azure Policy using Infrastructure as Code, sometimes referred to as Policy as Code. You can read about that more if you are interested here:

Use Terraform to manage Azure Policy
There are several ways you can manage Policy as Code with Microsoft Azure. There are things like Enterprise Policy as Code (EPAC) and Azure Landing Zone Conceptual Architecture (ALZ) (Both Terraform and Azure Bicep options exist). Not to mention the different ALZ accelerators that exist but they are more focused

While that post talked about using the built-in policy definitions that Microsoft supplies this post will cover custom policies where the built-in does not really suit our needs or if we just want to make small adjustments which the policy definition from Microsoft does not cover.

Of course we will do this using IaC and Terraform. We will need to author our own policy definition instead of referencing an existing one with a data block and we will need to create a policy assignment for it.

We will make use of a key feature which Terraform has that is called jsonencode() which will transform our Terraform/HCL code into JSON which is what Azure Policy Definitions accept. There is also a function called jsondecode() which does the opposite, turns JSON into HCL.

The scenario

We need to author a policy where we as an organization have a requirement to ensure that our storage accounts in production environments make use of at least zone-redundant storage accounts to increase our resilience in Azure. There is a built in policy already for enforcing the use of both zone redundant and geo-reduntant storage accounts on their own but no combined one.

We will create a new one that will enforce a list of account replication types that will cover both, our list will consist of the following replication types:

"Standard_GRS",
"Standard_RAGRS",
"Standard_GZRS",
"Standard_RAGZRS",
"Standard_ZRS
"Premium_ZRS"

This will be applied to our production resource group with a custom policy definition, avoiding having to create two separate assignments for enforcing account replication on our storage accounts.

Our starter code:

First as usual we need to create our base project. All of the code for this project can be found in the Github repo HERE

In our main.tf I will enter the following:

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "4.14.0"
    }
  }
}

provider "azurerm" {
  features {}
  subscription_id = var.azure_subscription_id
}

resource "azurerm_resource_group" "this" {
  name     = "rg-${var.environment}-${var.location_short}-custompolicy"
  location = var.location
}

Inside my variables.tf

variable "azure_subscription_id" {
  type        = string
  description = "Azure Subscription ID"
}

variable "environment" {
  type        = string
  description = "The environment for the deployed resources"
}

variable "location" {
  type        = string
  description = "The Azure region where resources will be deployed"
  default     = "swedencentral"
}

variable "location_short" {
  type        = string
  description = "The location short of the deployed resources resources will be deployed"
  default     = "sc"
}

I will also create a file here: variables/prod.tfvars where I fill out some values for the deployment:

azure_subscription_id = "-your-sub-id-"
environment           = "prod"

The policy definition

With all the starter code out of the way we will begin with our azurerm_policy_definition resource and here we will make use of the jsonencode() function to help us author the code.

A pro tip! I will go into the Azure Portal into any existing policy definition file I can find and copy the parts that I need which will help me not having to remember the syntax. First the base information however:

resource "azurerm_policy_definition" "this" {
  name         = "allowed_storage_replication_type"
  policy_type  = "Custom"
  display_name = "Allow only storage accounts of zone or geo redundant replication"
  description  = "This is a custom policy which will combine and allow both zone and geo redundant storage accounts"
  mode         = "Indexed"

}

Important that policy_type is set to custom here

Now we need the beefy parameters part and the policy_rule part, here I will copy from any existing definition in the portal:

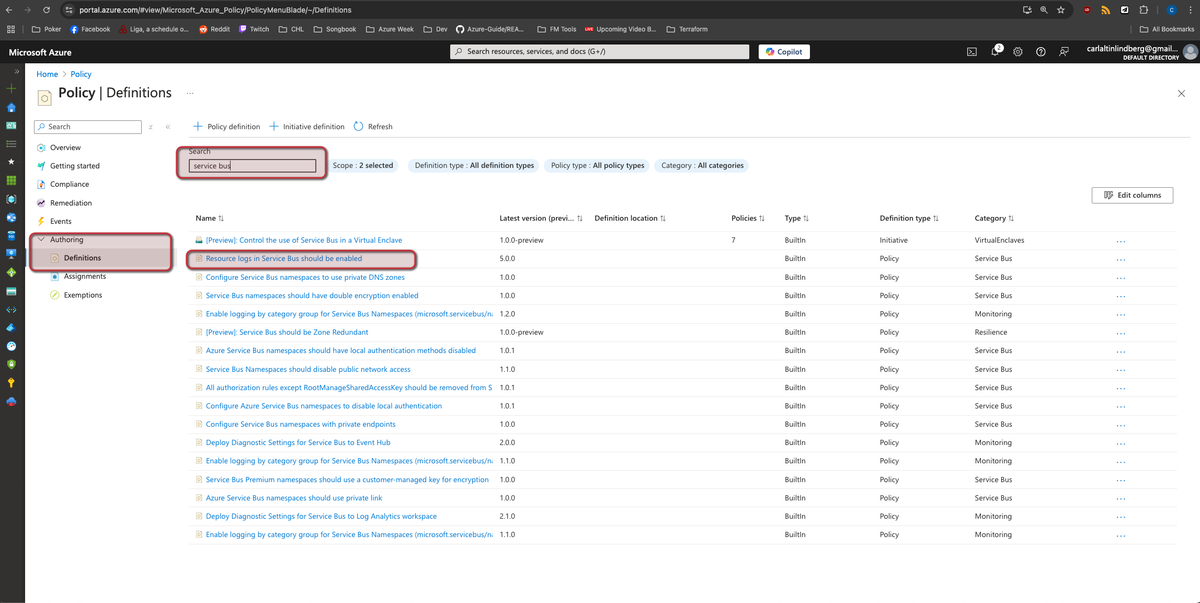

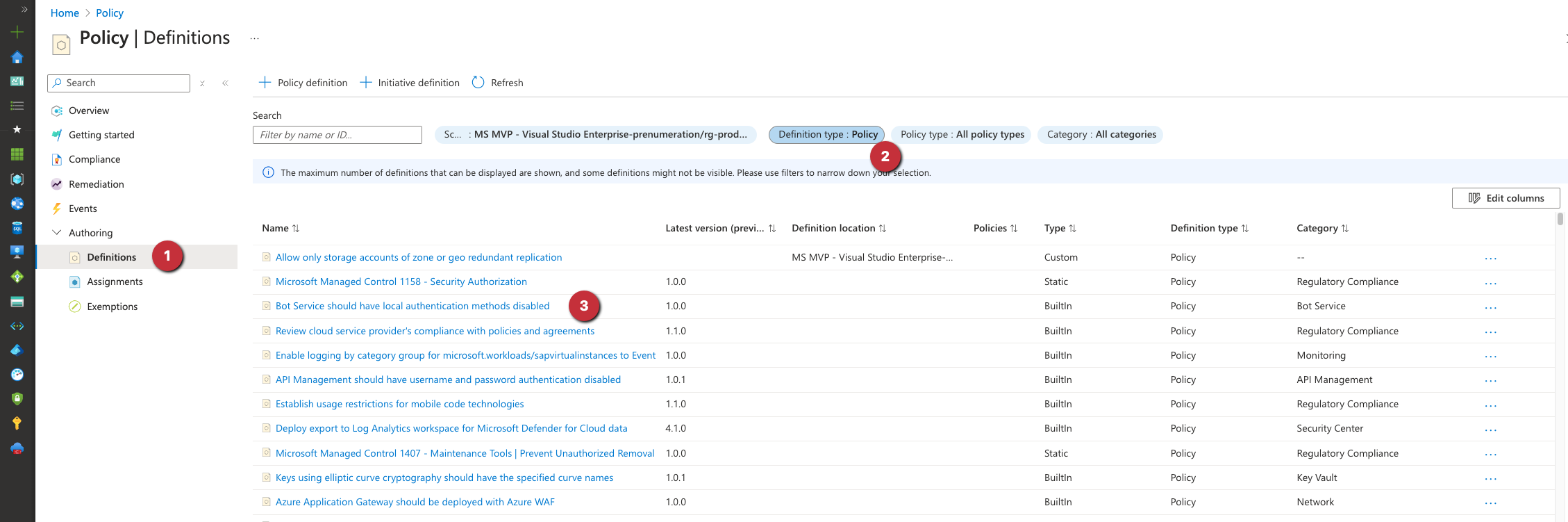

I chose this policy definition but pretty much anyone will work

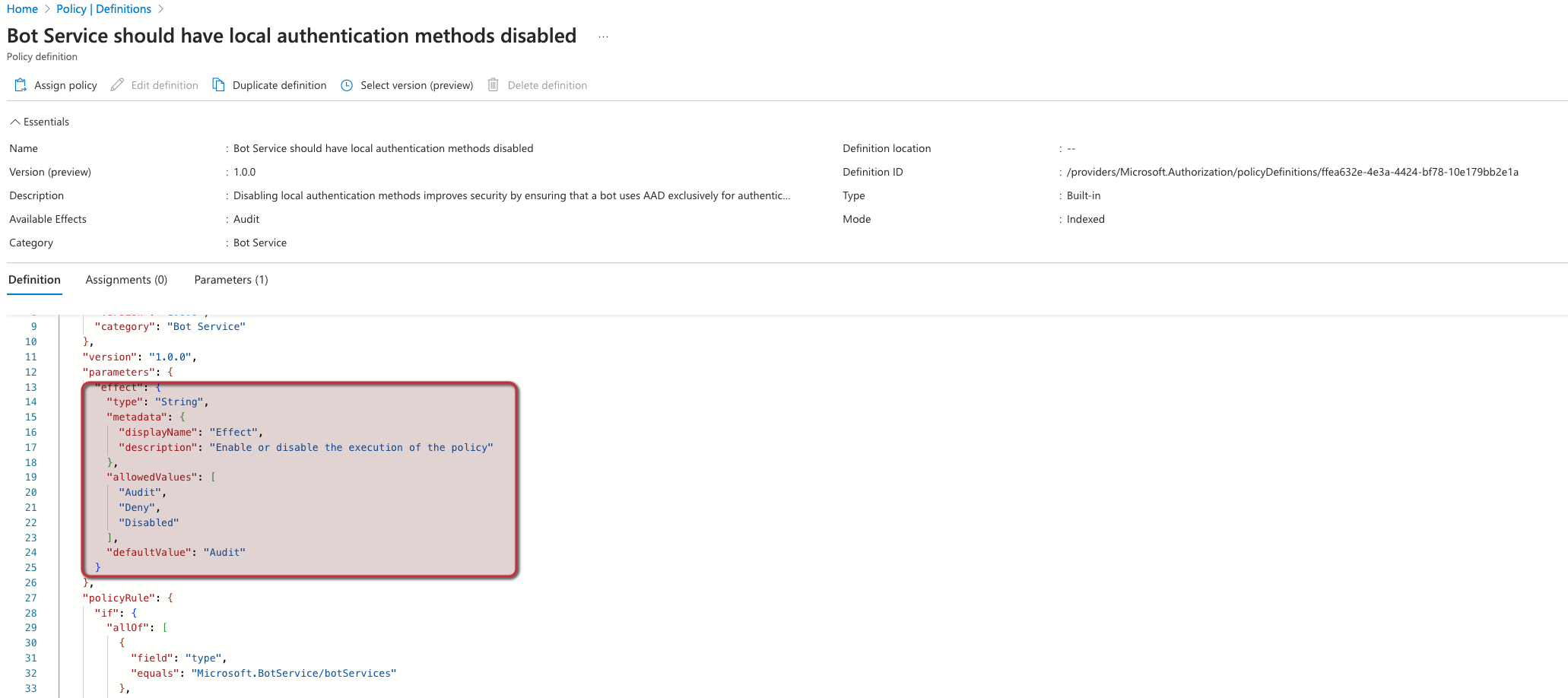

Now select it and scroll down into the JSON definition and copy the parameters section:

Copy the highlighted part only, not the entire parameters block

Now inside your azurerm_policy_definition block add the parameters property and write the following for value before your paste in anything: jsonencode({}) and press enter and now paste. Replace the parameter name and values with your values and replace all : symbols with = so it works with Terraform. The end product in my scenario looks like this:

parameters = jsonencode({
    "effect" = {
      "type" = "String",
      "metadata" = {
        "displayName" = "Effect",
        "description" = "This parameter lets you choose the effect of the policy. If you choose Audit (default), the policy will only audit resources for compliance. If you choose Deny, the policy will deny the creation of non-compliant resources. If you choose Disabled, the policy will not enforce compliance (useful, for example, as a second assignment to ignore a subset of non-compliant resources in a single resource group)."
      },
      "allowedValues" = [
        "Audit",
        "Deny",
        "Disabled"
      ],
      "defaultValue" = "Audit"
    }
  })

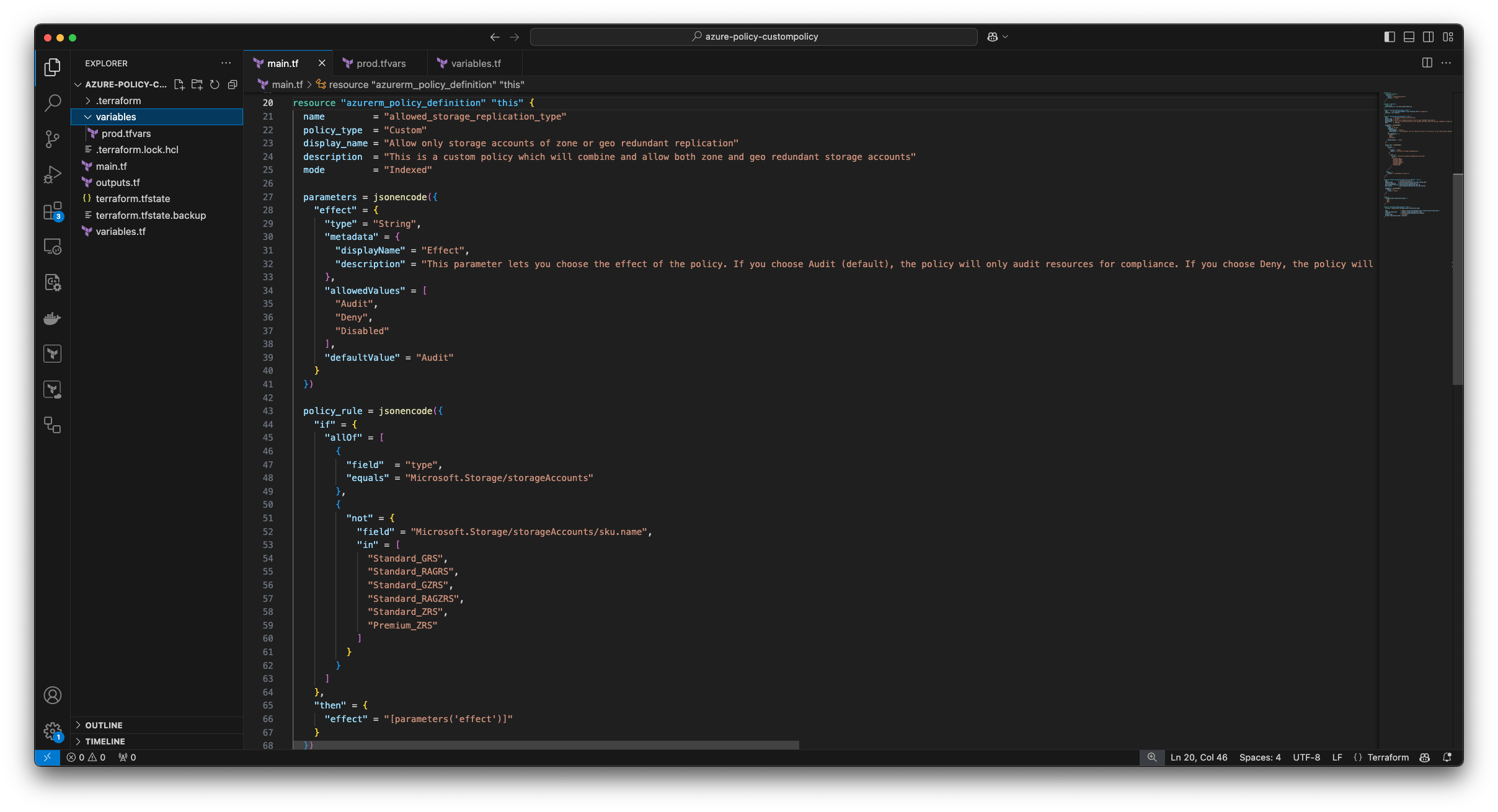

Now do the same for policy_rule . My entire definition now looks like this:

resource "azurerm_policy_definition" "this" {
  name         = "allowed_storage_replication_type"
  policy_type  = "Custom"
  display_name = "Allow only storage accounts of zone or geo redundant replication"
  description  = "This is a custom policy which will combine and allow both zone and geo redundant storage accounts"
  mode         = "Indexed"

  parameters = jsonencode({
    "effect" = {
      "type" = "String",
      "metadata" = {
        "displayName" = "Effect",
        "description" = "This parameter lets you choose the effect of the policy. If you choose Audit (default), the policy will only audit resources for compliance. If you choose Deny, the policy will deny the creation of non-compliant resources. If you choose Disabled, the policy will not enforce compliance (useful, for example, as a second assignment to ignore a subset of non-compliant resources in a single resource group)."
      },
      "allowedValues" = [
        "Audit",
        "Deny",
        "Disabled"
      ],
      "defaultValue" = "Audit"
    }
  })

  policy_rule = jsonencode({
    "if" = {
      "allOf" = [
        {
          "field"  = "type",
          "equals" = "Microsoft.Storage/storageAccounts"
        },
        {
          "not" = {
            "field" = "Microsoft.Storage/storageAccounts/sku.name",
            "in" = [
              "Standard_GRS",
              "Standard_RAGRS",
              "Standard_GZRS",
              "Standard_RAGZRS",
              "Standard_ZRS",
              "Premium_ZRS"
            ]
          }
        }
      ]
    },
    "then" = {
      "effect" = "[parameters('effect')]"
    }
  })
}
Make sure terraform fmt does not throw errors after you've replaced : with = to make sure formatting and syntax is correct

Now finally we just need to apply this as a policy assignment so this definition can enforce its rules somewhere. I will assign it to the resource group we made earlier:

resource "azurerm_resource_group_policy_assignment" "this" {
  name                 = "allowed_storage_sku"
  display_name         = azurerm_policy_definition.this.display_name
  resource_group_id    = azurerm_resource_group.this.id
  policy_definition_id = azurerm_policy_definition.this.id
  description          = azurerm_policy_definition.this.description

  parameters = jsonencode({
    "effect" = {
      "value" = "Audit"
    }
  })
}

effect is set to Audit. The definition allows Audit , Deny and Disabled

The final test

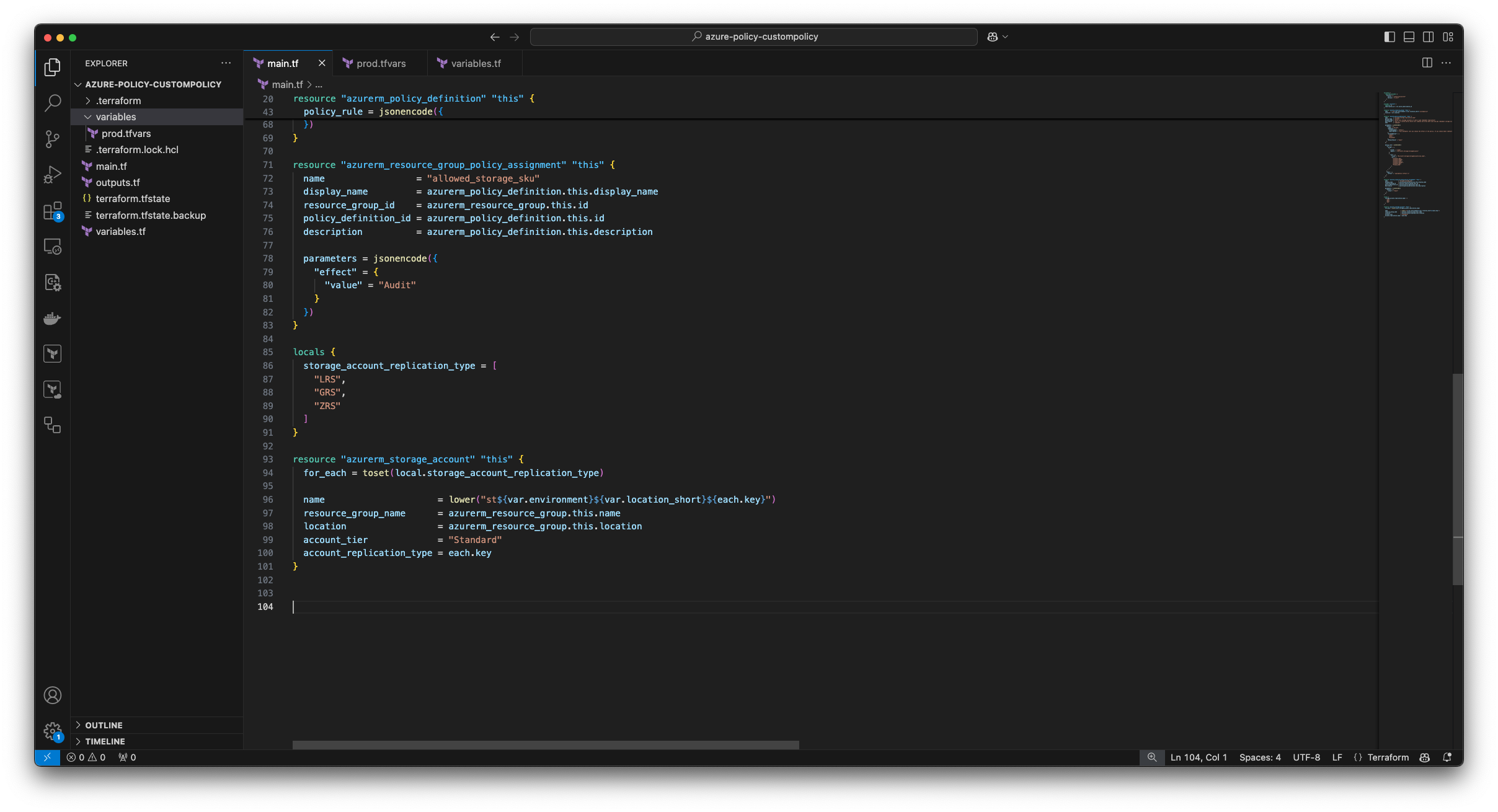

Having applied this policy I will write the following code to create three storage accounts. Two that follow our definition and one with local redundant storage which our policy does not like.

locals {
  storage_account_replication_type = [
    "LRS",
    "GRS",
    "ZRS"
  ]
}

resource "azurerm_storage_account" "this" {
  for_each = toset(local.storage_account_replication_type)

  name                     = lower("st${var.environment}${var.location_short}${each.key}")
  resource_group_name      = azurerm_resource_group.this.name
  location                 = azurerm_resource_group.this.location
  account_tier             = "Standard"
  account_replication_type = each.key
}

The LRS storage account should be marked non-compliant

Once deployed I will wait a while for Azure Policy to scan it for compliance. You cant trigger this by running the following az cli command az policy state trigger-scan -g rg-prod-sc-custompolicy

And in the portal after a while, since the policy is in Audit mode it will just mark the resource as non-compliant

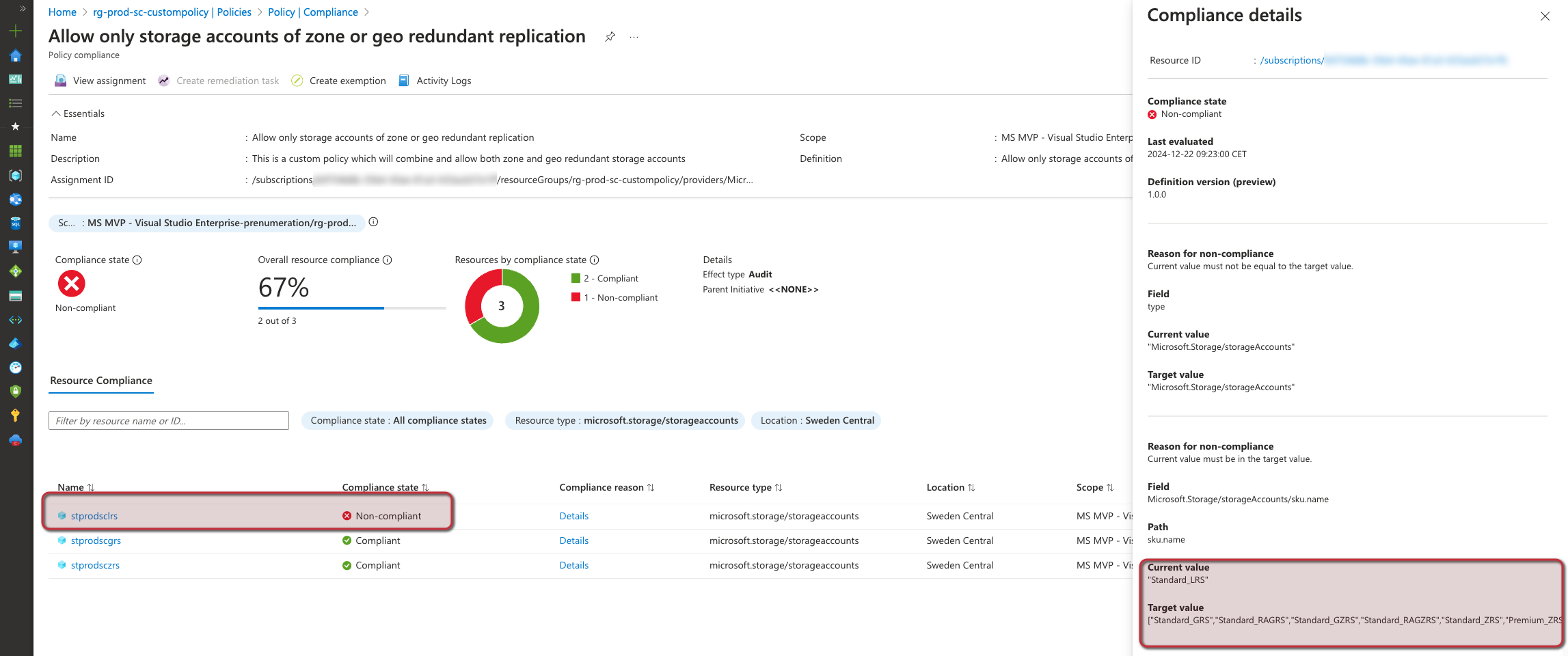

Only the LRS storage account is marked as non-compliant

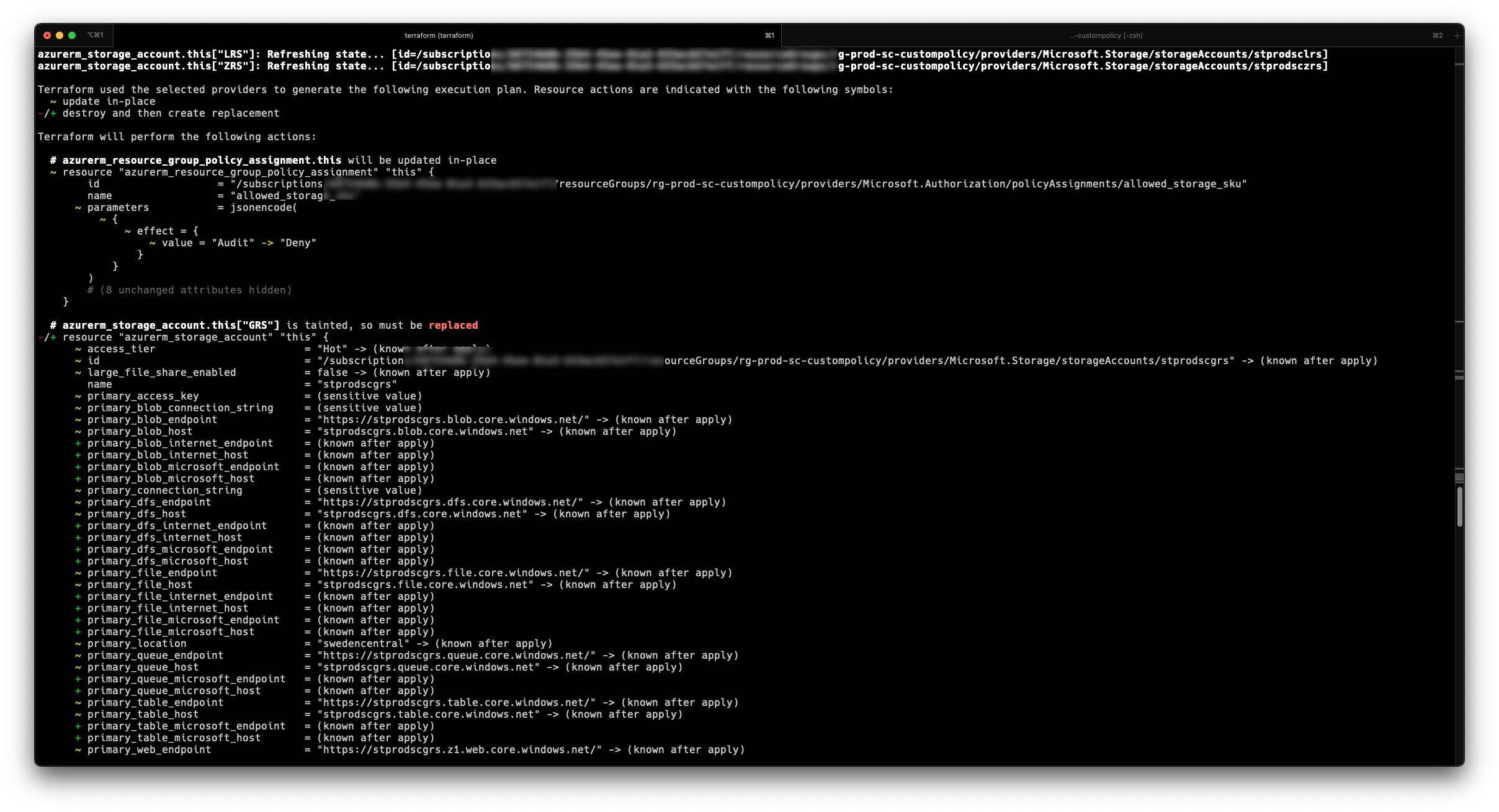

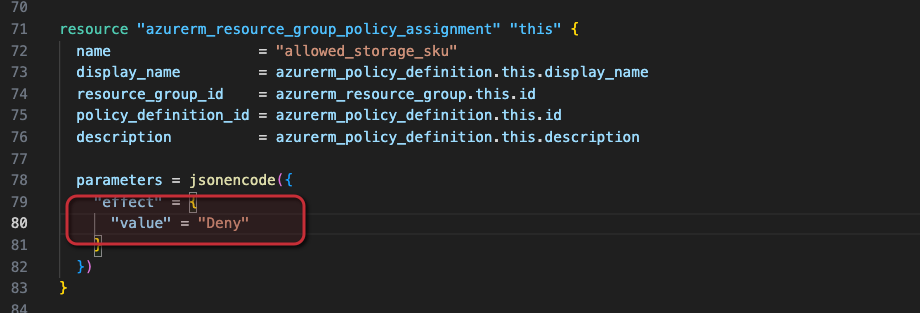

If I destroy all the storage accounts and update my policy definition to have the effect of Deny instead I should not be allowed to even create the storage accounts.

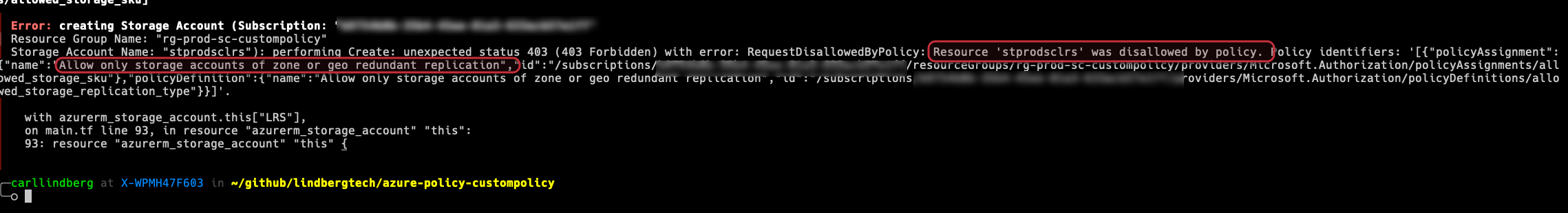

Upon re-creating the storage accounts I get hit with an error for the LRS storage account

Conclusion

Hopefully you can see just how powerful this can. Any change will be documented in source control, hopefully reviewed by a peer first in a pull request and then rolled out into production.

This way you could have the same assignment but with effect Audit in a development and/or acceptance environment first and then Deny in production, and on and on..

Finally I wish you happy holidays and hope you get some well deserved rest!
